Automated Optical Inspection (SQ3000)

THE ULTIMATE IN SPEED AND ACCURACY

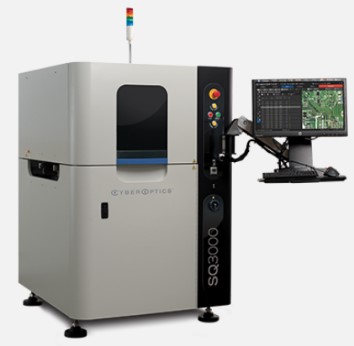

SQ3000 / SQ3000-X 3D AOI

SQ3000 3D Automated Optical Inspection (AOI) system maximizes ROI and line utilization with 3D multi-view sensors that enable fastest 3D inspection in the industry. SQ3000 incorporates Multi-Reflection Suppression technology (MRS) and highly sophisticated 3D algorithms offering microscopic image quality at production speeds. SQ3000-X offers expanded capabilities supporting large boards up to 710 x 620 mm, inspecting the most demanding assemblies without compromising measurement accuracy and repeatability.

Key Features & Benefits

Incorporates Multi-Reflection Suppression technology (MRS)
Metrology grade accuracy
High speed inspection
Fast, smart, easy-to-use software
20+ Award-winning
Advanced defects inspection, Gold finger contamination, package coplanarity, etc.

Specifications

Inspection speed (2D+3D):	50cm²/sec to 15 cm²/sec (depends on MRS sensor type)
Minimum component size:	0402mm(01005 in.) or 0201mm (008004 in.) (depends on MRS sensor type)
PCB size:	SQ3000: 50x50mm – 510x510mm SQ3000-X: 50x120mm – 720x620mm
Measurement Gage R&R	<10%@±3σ (±80μm process tolerance)
Height accuracy	1 μm on Certification Target
